Specifications:
Operating Voltage: 6V~7.2V
Operating Current: 2~3A
Speed: 0.18 sec/60deg (6v)
0.16 sec/60deg (7.2v)
Torque: 17.8kg.cm (6v)
21.5kg.cm (7.2v)

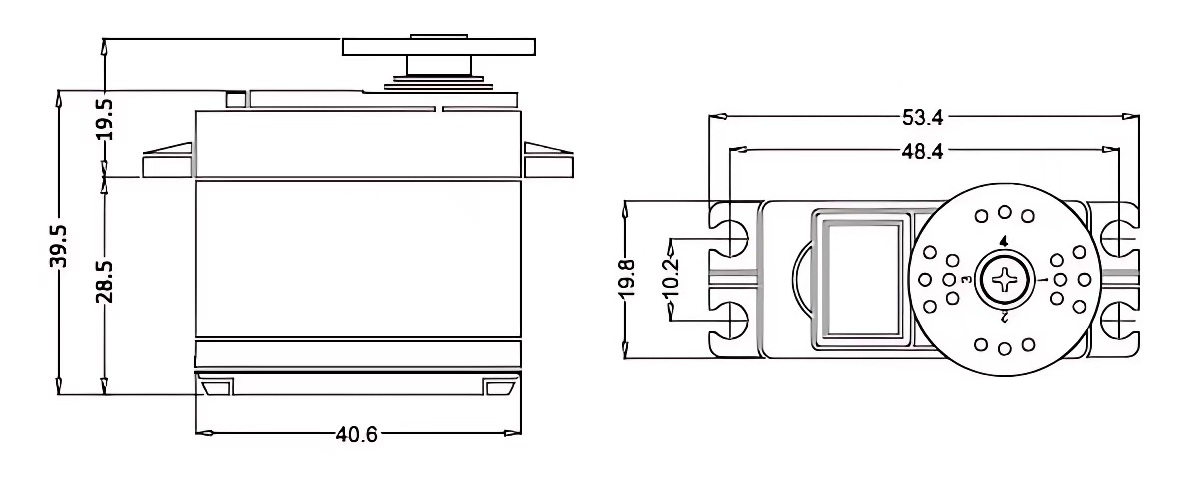

Size: 40mmX20mmX38.5mm
Weight: 56gram
Motor: 3 pole Core motor
Gear Train: Metal(copper gear)
Ball Bearing: 2BB
Dead band width: 2usc
Interface: (JR)
Wire length: 30cm
Type: Digital,2BB,metal gear
Rotation angle options:
1) 180 degree(PWM500-2500us)
2) 270 degree(PWM500-2500us)
3) 360 degree(PWM500-2500us)

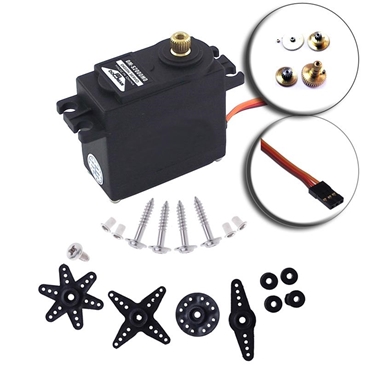

Package lncludes:
1pcsX 20kg.cm Torque Full Metal Gear Digital Servo Motor
Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn
1 x 4-arm servo horn
1 x 6-arm servo horn
1 x round servo disc
4 x rubber grommets with brass inserts
4 x mounting screws
1 x mounting bolt
3 x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
Note: all the descriptions and prices are subject to change without prior notice.
