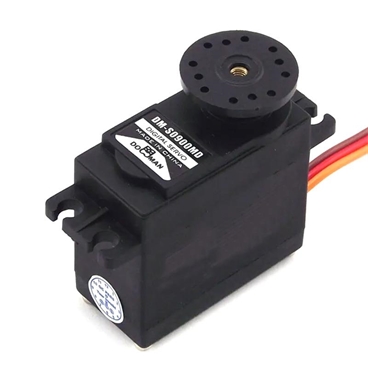

9kg.cm Torque Full Metal Gear Digital Servo Motor

Specifications:

Operating Voltage: 4.8V~7.4V
Speed: 0.15 sec/60deg (4.8v)
            0.13sec/60deg (6v)
Torque: 9kg.cm (4.8v)
             12kg.cm (6v)

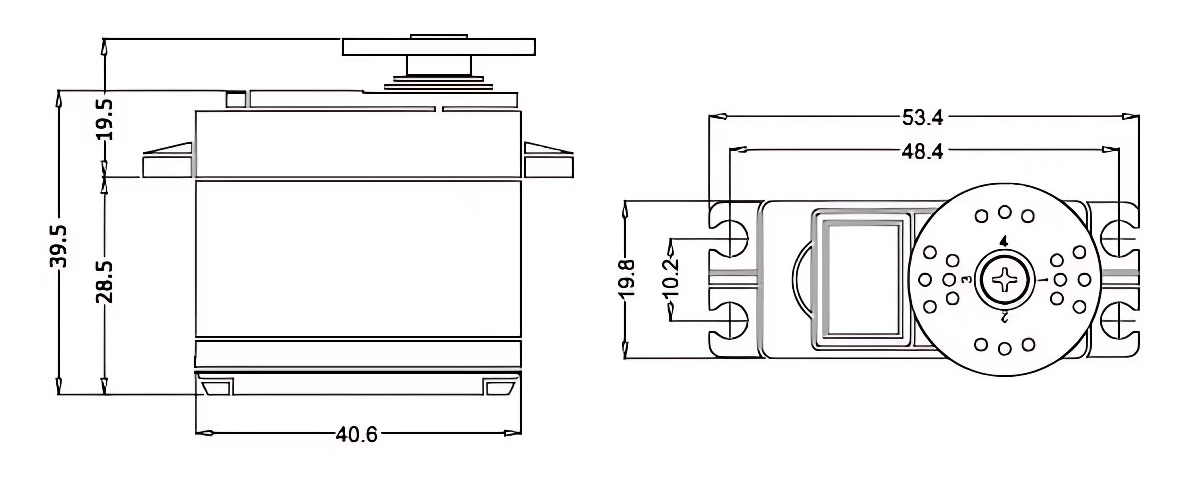

Size: 40mmX20mmX38.5mm

Weight: 56gram
Motor: 3 pole Core motor

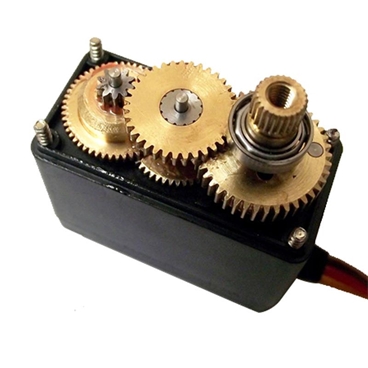

Gear Train: Metal(copper gear)
Ball Bearing: 2BB
Dead band width: 2usc
Interface: (JR)
Wire length: 30cm
Type: Digital,2BB,metal gear

Rotation angle options:

1) 180 degree(PWM500-2500us)
2) 270 degree(PWM500-2500us)
3) 360 degree(PWM500-2500us)

Package lncludes:

1pcsX 9kg.cm Torque Full Metal Gear Digital Servo Motor

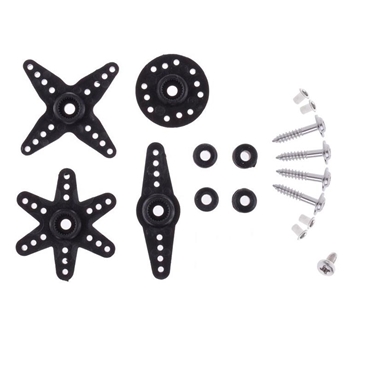

Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn
1 x 4-arm servo horn
1 x 6-arm servo horn
1 x round servo disc
4 x rubber grommets with brass inserts
4 x mounting screws
1 x mounting bolt
3 x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive

Note: all the descriptions and prices are subject to change without prior notice.
