Description:
Dimensions: 28.2mm (length) * 13.1mm (W) * 5.5mm (height)
Weight: 5g
Operating voltage: 4V - 30V
Signal Output Type: Analog
Temperature measuring range: 0 - 100
Measuring accuracy: 0.5
linear scale factor: +10 mV /
Low power consumption, less than 60uA
low output impedance, 1mA current through only 0.1
with screw holes for easy installation and fixed. Aperture 2.6mm
the wiring plan:
"+": Positive power supply
"-": Negative one
"out": pick AD converter module analog signal input terminal or directly connected to the multimeter to measure
Package includes:

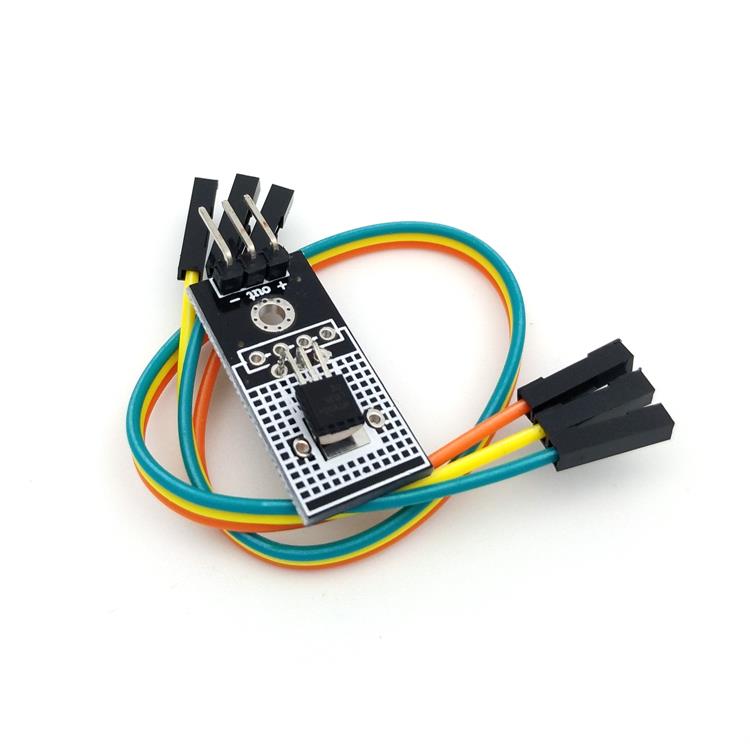

1 X LM35 Module 1 (tested good antistatic packaging)
1 X 20cm DuPont line 3 (Random Color)
Note: all the descriptions and prices are subject to change without prior notice.
