• Standard voltage sensor module
  • Standard voltage sensor module
  • Standard voltage sensor module

Standard voltage sensor module

SKU
MDL.1027
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<20 RFQ
20+ RFQ
50+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

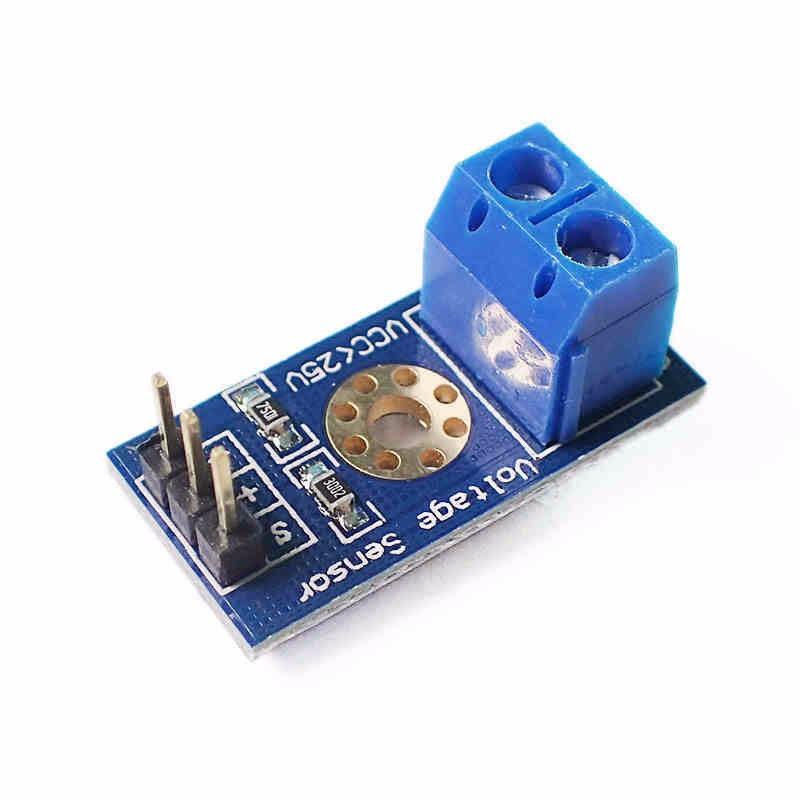

Size: 25mm×13mm/0.98"×0.51"(approx)
This module is based on principle of resistive voltage divider design,
can make the red terminal connector input voltage to 5 times smaller.Arduino analog input voltages up to 5 v,
the voltage detection module input voltage not greater than 5Vx5=25V
(if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).
Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023),
so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.
Voltage input range : DC0-25 V
Voltage detection range : DC0.02445 V-25 V
Voltage analog resolution : 0.00489 V
Output Interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected Arduino AD pins
DC input interface : red terminal positive with VCC, negative with GND
By 3P connector, connect this module with the expansion of board Arduino,
not only makes it easier for you to detect voltage battery,
can also use the IICLCD1602 LCD to display voltage.


1 X Standard voltage sensor module
