Features:
Adopt imported controller RS232 TTL,which can stabilize the flash with high speed
500mA self recovery fuse for protection

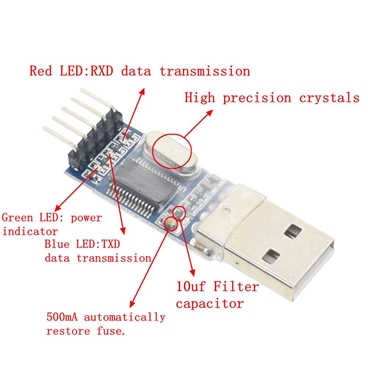

Two data transmission indicator can monitor data transfer status in real time
Reserve 3.3V and 5V pin interface,easy for the DDWRT of different voltage system that need power
The entire board is coated by high quality transparent heat-shrinkable sleeve,making the PCB in insulation state from outside,
so that the board won\'t burnt down by material short cut.
Electrostatic package,insures the board will not be damaged before use
Support WIN7 system
Important note: this module is using a compatible IC to replace PL2303HX, it may not work for some systems.
Specifications:
Dimention: 50x15x7mm
Net weight:5g
Color:Blue(as the picture shows)
Package includes:

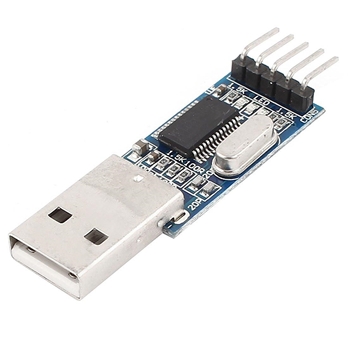

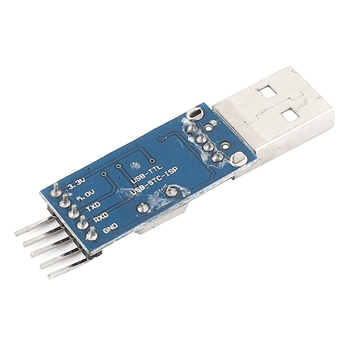

1 X USB to TTL converter adapter module
Note: all the descriptions and prices are subject to change without prior notice.
