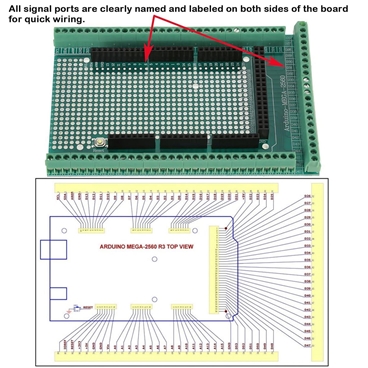

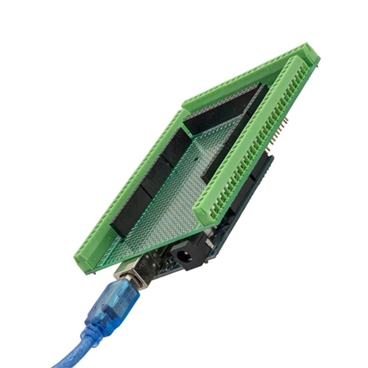

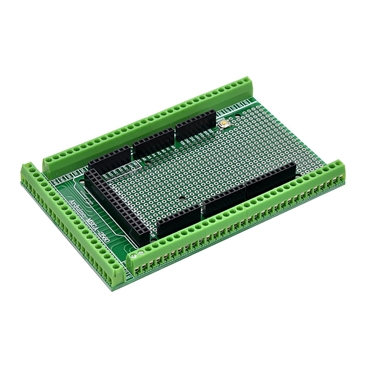

Mega 2560 R3 Prototype Screw Terminal Block Shield Board

Specifications:

PCB:

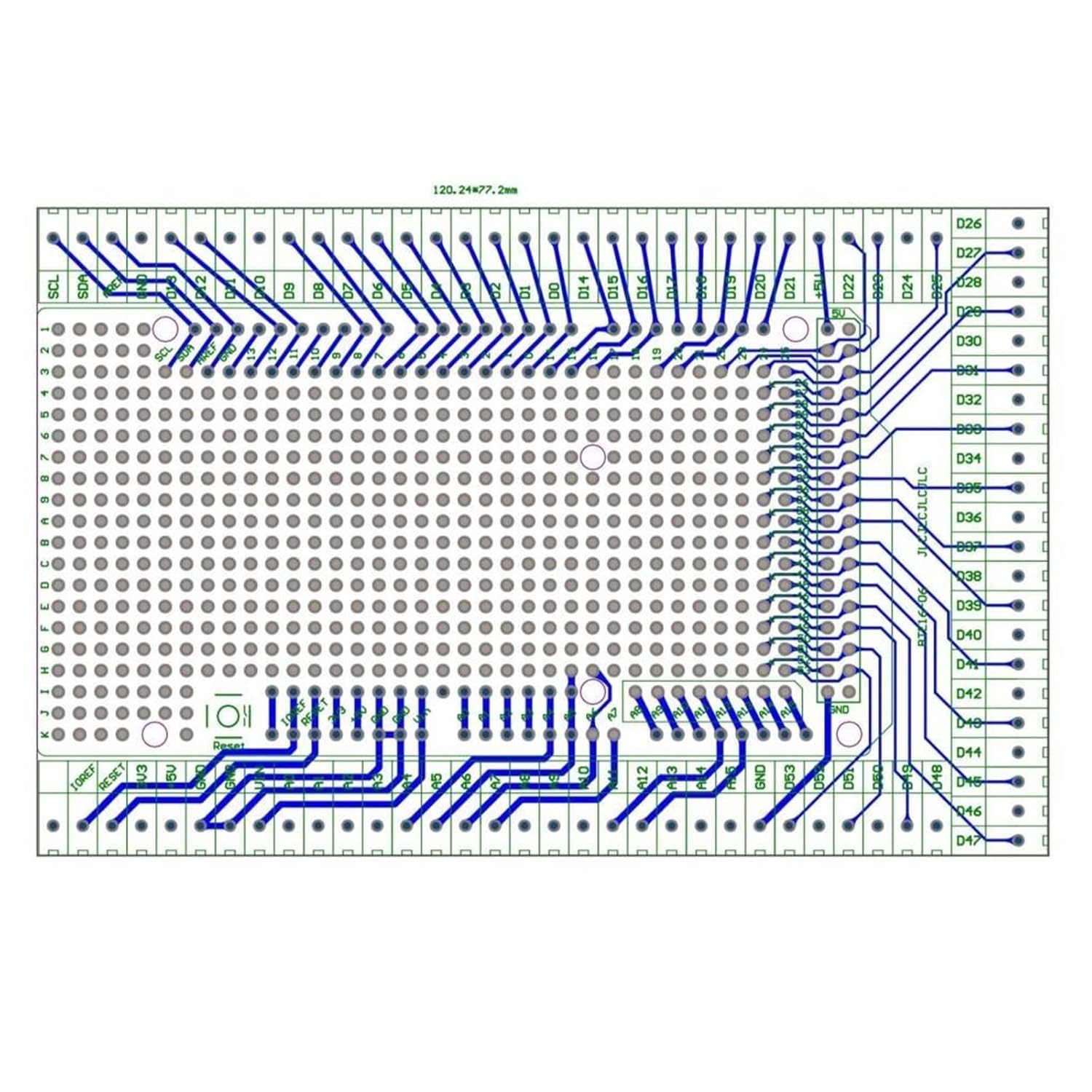

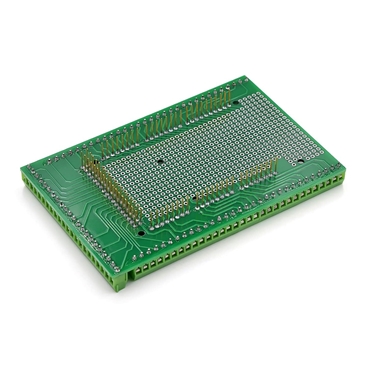

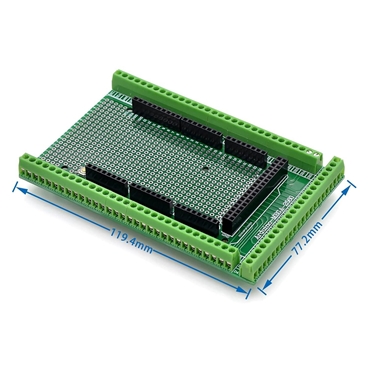

FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm
Terminal Block:
Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range: 26~16AWG
Strip length: 5mm
Screws M2 steel
Pin header and cage brass
Female Header Socket:
Pitch: 0.1"/2.54mm
Pin length: 15mm / 0.59"
1PCS Single row 10pin
5PCS single row 8pin
1PCS dual row 18pin

Package includes:
1x Pre-Assembled Mega 2560 R3 UNO Prototype Screw Terminal Block Shield Board Kit

Note: all the descriptions and prices are subject to change without prior notice.
