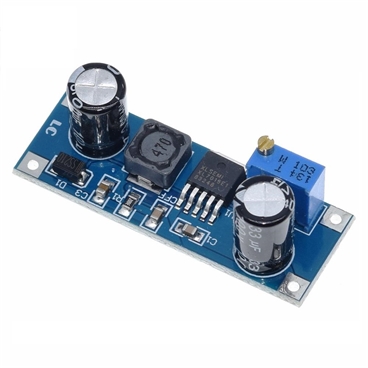

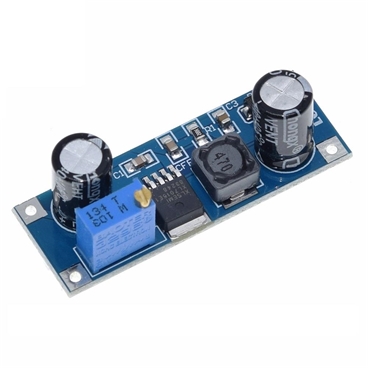

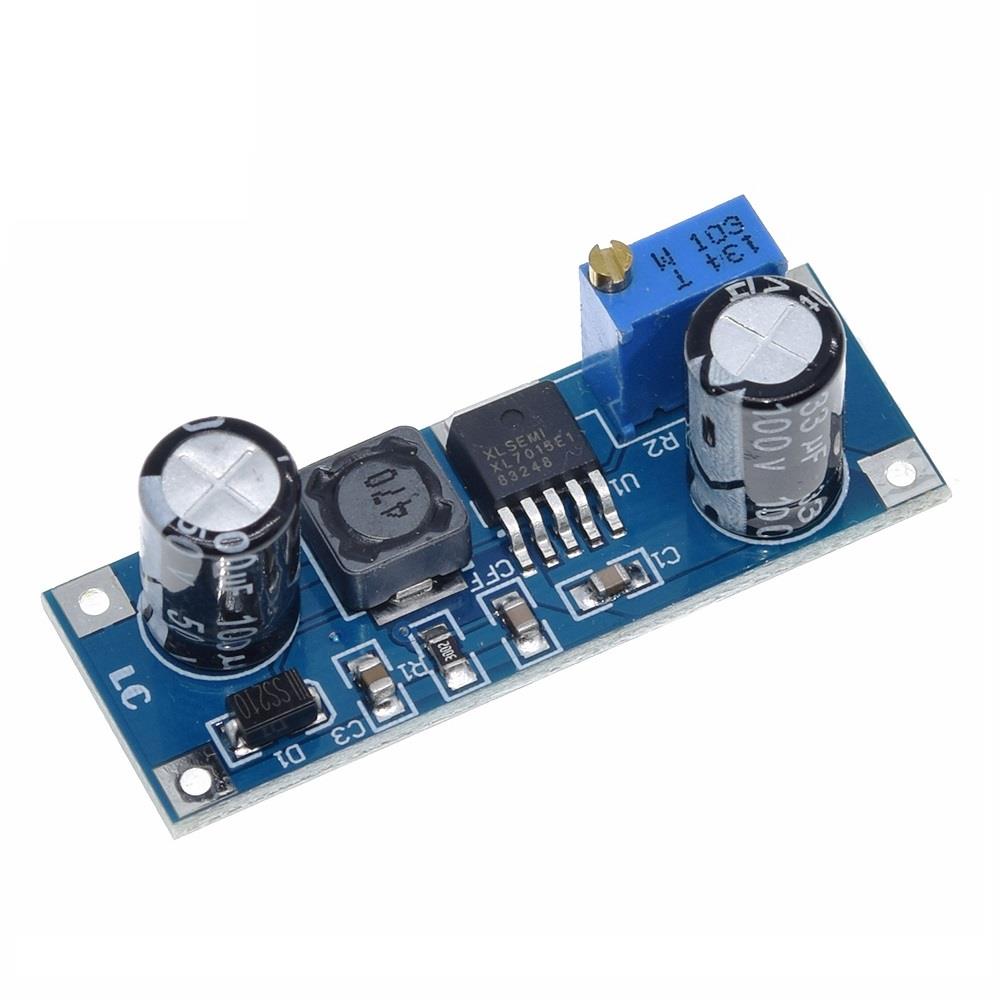

XL7015 DC-DC converter Step-Down module 5V-80V Wide Voltage Input

SKU
MDL.1339
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
Login For Price
Qty
- +

Payment Accepted

Bulk Order

Unit Price

<20 RFQ
20+ RFQ
50+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Specifications:


XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

1. 5 v to 80 v input voltage range wide;
2. The output voltage from 5 v to 20 v adjustable;
3. The minimum pressure drop 1 v.
4. 0.8 A biggest switch current;
5. Recommend the output power is less than 7 w;
6. Shut off built-in overheating protection, output short circuit protection, over current protection;
7. Good linear with load regulation;
The board size: 16 mm * 44 mm;

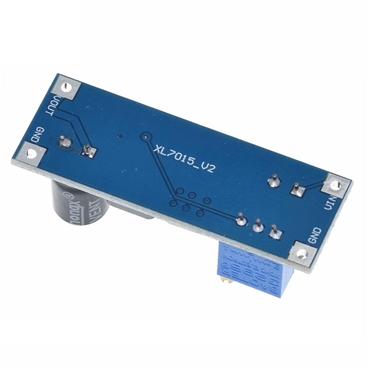

Wiring instructions
1. VIN: input voltage (5 v - 80 - v);
2. The GND: input voltage side;
3. The VOUT: output voltage (5 v - 20 v);
4. The GND: output voltage to end;


5 1_

Package includes:

1 X XL7015 DC-DC converter Step-Down module 5V-80V Wide Voltage Input


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
