Description:
Based on ESP8266 WiFi IC.
It runs LWIP
ISM 2.4GHz PA +25dBm
Wireless standards: 802.11b/g/n
WIFI Direct (P2P),SOFT-AP
Built-in TCP/IP
The AT command is perfect,efficient,concise
Support three modes: AP, STA and AP+STA coexistence mode
The module is set to 9600 baud.
CH_PD must be connected to 3.3V and GPIO15 to GND.
The commands must be sent with CR + LF
Note: This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V Arduino will destroy this module. You must use a logic level converter, or a 3.3V Arduino
The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module. You must provide a separate, higher 3.3V supply(about 300mA or better)
Package includes:

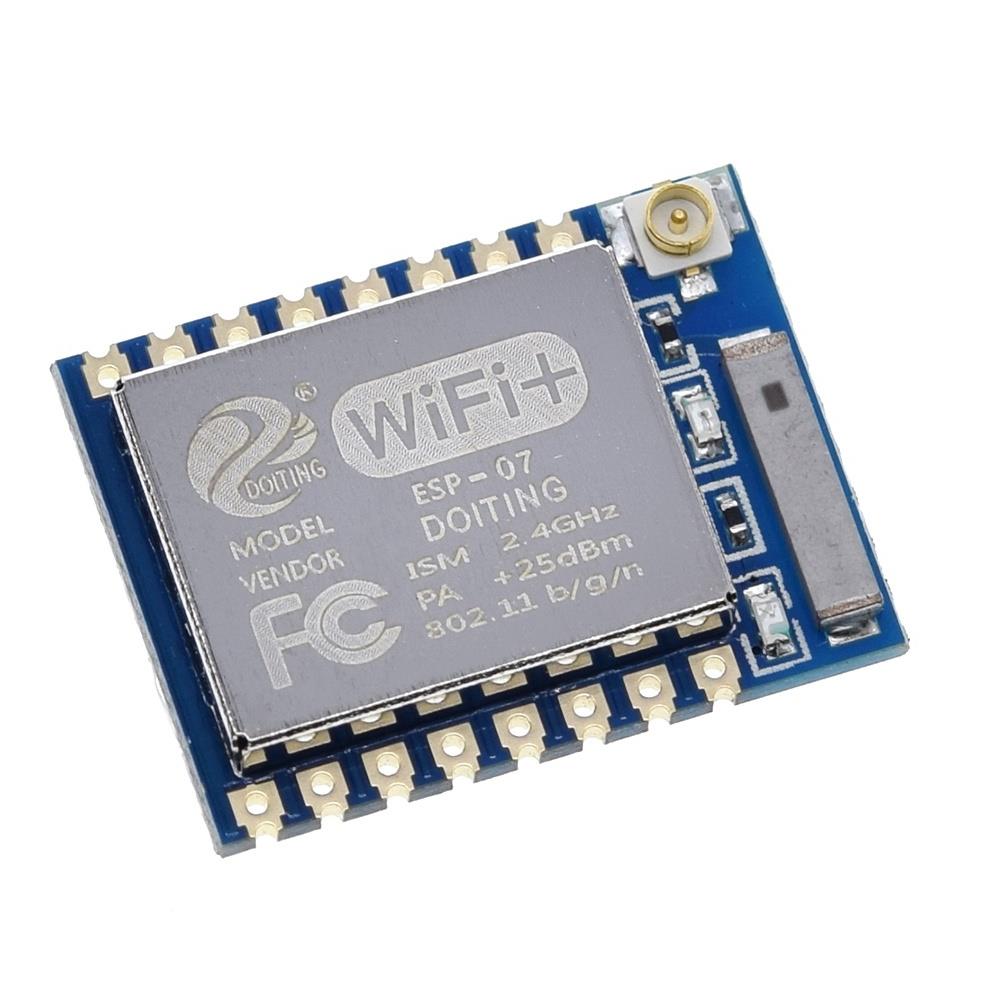

1 X ESP-07 ESP8266 WiFi REMOTE Serial Transceiver wireless Module
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
