Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
Trigger Voltage: 0-1.5V (LOW); 3-5V (High)
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm X 26mm X 18.5mm (1.9 inch *1.02 inch * 0.72 inch )
Input Connection:
DC +: Positive power supply (VCC)
DC-: Connect power negative ( GND)
IN: Control the pick up of replay by low level or high level
Output Connection:
Left Connection: “NO” means “Normally Open”
Middle Connection: “COM” means “Common”
Right Connection: “NC” means “Normally Closed”
High and Low Level Trigger Effective
High level trigger when the jumper cable connecting “High” to Short Circuit;
Low level trigger when the jumper cable connecting “Low” to Short Circuit;
LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red
Package Includes:

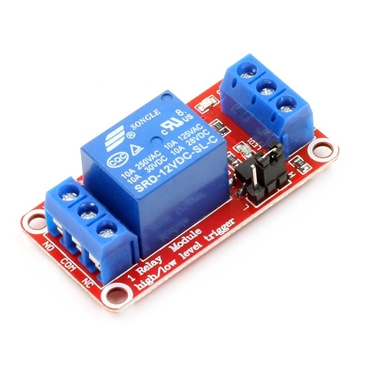

1 X 1 Channel 12V Relay Module With optocoupler Support High/Low Level Trigger
