DC12V 28BYJ-48 Stepper Motor 4 Phase Motor

SKU
MTR.1053
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<20 RFQ
20+ RFQ
50+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Electronic Parameters :
Rated voltage : 12VDC
Number of Phase : 4
Speed Variation Ratio : 1/64
Stride Angle : 5.625° /64
Frequency : 100Hz
DC resistance : 200Ω±7%(25℃)
Idle In-traction Frequency : >600Hz
Idle Out-traction Frequency : >1000Hz
In-traction Torque : >34.3mN.m(120Hz)
Self-positioning Torque : >34.3mN.m
Friction torque : 800-1800 gf.cm
Pull in torque : 450 gf.cm
Insulated resistance : >10MΩ(500V)
Insulated electricity power :600VAC/1mA/1s
Insulation grade :A
Rise in Temperature <40K(120Hz)
Noise <35dB(120Hz,No load,10cm)

Exportise DC12V (28BYJ-48-5V)-datasheet.pdf

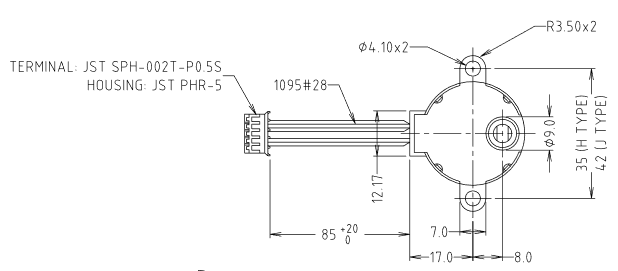

image.png                image.png


Package Includes:
1 x 28BYJ-48 Valve Gear Stepper Motor DC 12V 4 Phase Stepper Motor

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
