Product Features:
Using FT232BL industrial chip, external EEPRON (93C46) more stable
Support for Windows 10
Support
three power supply mode: 5V external power supply; 3.3V external power
supply; by the external power supply (requires 3.3V-5V)
With three LED: TXD LED, RXD LED, POWER LED
GND, RXD, TXD, 3V3, 5V: Cited with curved needle
Other functions PIN: Reserved pad CTS, RTS
With 500MA self-recovery fuse reverse does not burn
Applications:
RS-232 traditional device upgrade to USB
USB to RS-232 serial adapter
Instructions for use: (access MCU as an example)
GND: Connect to GND
RXD: connected to MCU.TX (signal flow: MCU.TX >> FT232 >> PC.RX)
TXD: connected to MCU.RX (signal flow: MCU.RX << FT232 << PC.TX)
3V3 / 5V: output 3.3V or 5V (module powered by USB, jump to jumper cap to 3.3V or 5V)
RTS: Connect to MCU.CTS (signal flow: MCU.CTS << FT232 << PC.RTS)
CTS: then MCU.RTS (signal flow: MCU.RTS >> FT232 >> PC.CTS)
Package included:

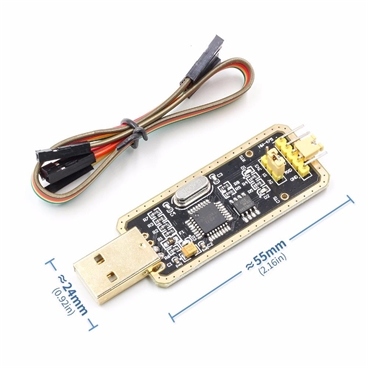

1 X FT232 FT232BL FT232RL USB to Serial USB to TTL Upgrade Download Brush Board Gold
Note:The color of the cable is random
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
