6pin FTDI FT232RL USB to TTL/RS232

SKU
MDL.1240
MOQ
10
Packaging
1pcs/lot
Unit Price
$0(based on 50+)
Unit Price
Login For Price
Qty
- +

Payment Accepted

Bulk Order

Unit Price

<20 0
20+ 0
50+ 0
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

FTDI based USB to TTL Serial Cable are designed using the the standard FT232RL chipset.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

RX and TX  OUT

The cables are available with a 6-way SIL, 0.1" connector

TTL levels is 3.3V

The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial

UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect

devices with a TTL level serial interface to USB

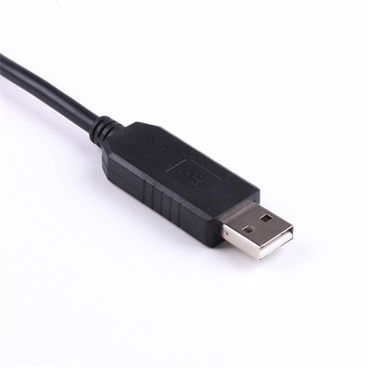

Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB
connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .

Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V.

Cables are available with either a 6-way SIL,0.1”pitch connector,

(intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections

The USB side of the cable is USB powered and USB 2.0 full speed compatible.

Each cable is 1.0m long and supports a data transfer rate up to 1.2 Mbaud (3.3V/5V TTL Level, but VCC both 5V)


Pinout connection plan:
Red wire: 5V or 3.3V optional, please specify the voltage when ordering, or we will ship 5V by default.
Black wire: GND
Yellow wire: RXD
Orange wire: TXD
Green wire: RTS
Brown wire: CTS


Package includes:

1 X FTDI FT232RL USB to Serial adapter module USB TO TTL For Arduino Cable 6Pin


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
