DIY Automatic Irrigation Module Kit

SKU
KTS.1054
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<20 RFQ
20+ RFQ
50+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Specifications:


This product does not need programming,  not include the microcontroller, so we don't provide any code.

We don't provide power, you can use the charging treasure (5V DC) as a power supply, or use 4XAA batteries.
About testing:
1. Test the relay module: connect the relay module VCC to 5V, GND to the ground, and IN to GND, the relay is will beat, if IN is vacant, the relay will restored, so you can hear the “Kaka” sound;
2. Test the soil moisture sensor module: connect the fork probe and transmitter module with two dupont cable, connect the transmitter module VCC to 5V, and GND to the ground. The red power lamp is always on as soon as it is powered on, and the green (blue) led will gleam for once; put the fork probe directly into the water, the green (blue) light will on;
3. Connect the red line of the pump to 5V, black wire to the ground, the water pump will start work. Note that: the test can be performed for 1 second. because it can not expose to the air for a long time.

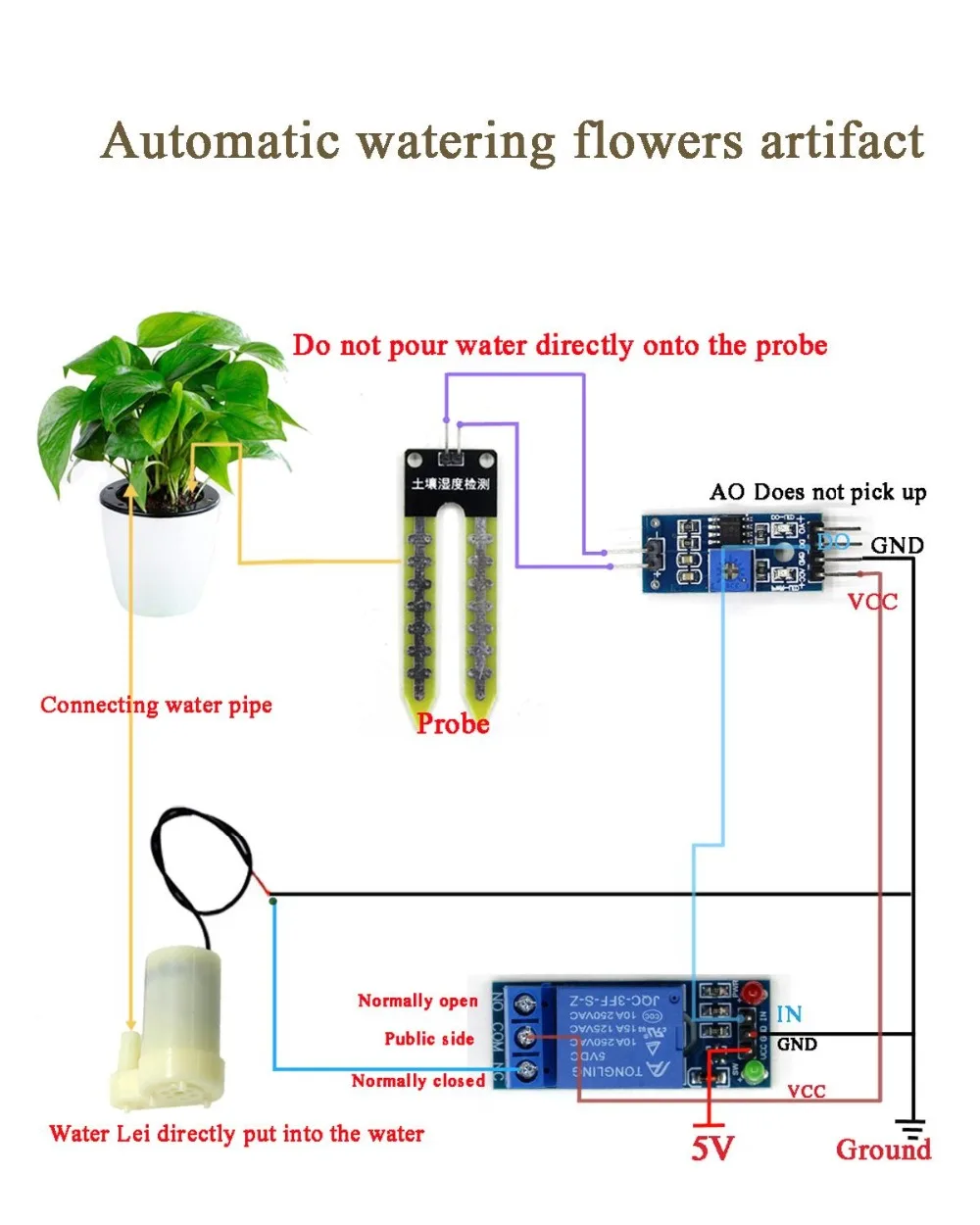

4, according to the schematic assembly.
Note:
1. This product needn't welding, but it requires you to strip the wire, twist the copper wire together and protect it with black tape.
2, The pump can not run a long time in the air;
3, Connect the system and power, the pump will work all time, it is right, because in the air, the probe can not detect the humidity, if install it to the flowerpot, then it can normally work.

Note:

Do not pour water directly onto the soil probe. If the humidity of the water is too high, it will cause the product to rust and become inoperable.




Item List:

Relay module X 1
Soil moisture probe + comparison module X 1
Small pump X 1
Battery holder X 1
USB to DC X 1
50cm silicone tube X 1
F-F dupont cable X 10


Package includes:

1 X DIY Automatic Irrigation Module Kit

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
