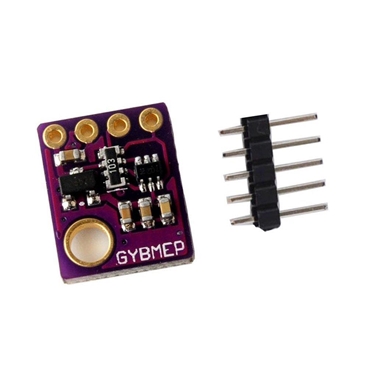

GY-BME280-5V Temperature Humidity Barometric Pressure Sensor Module SPI 1.8-5V
BME280, the precision sensor from, is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Features:
Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Accuracy:
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa
I2C address
SDO LOW : 0x76
SDO HIGH: 0x77
Package Includes:
1 X GY-BME280-5V Temperature Humidity Barometric Pressure Sensor Module SPI 1.8-5V
