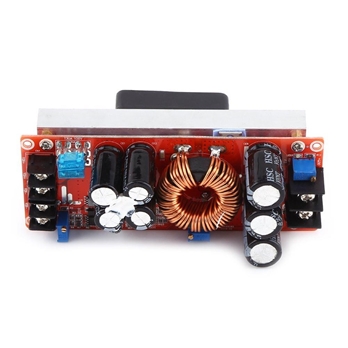

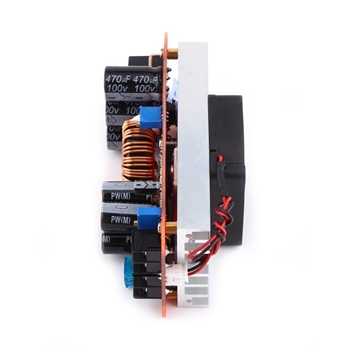

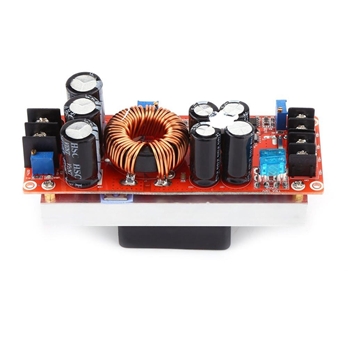

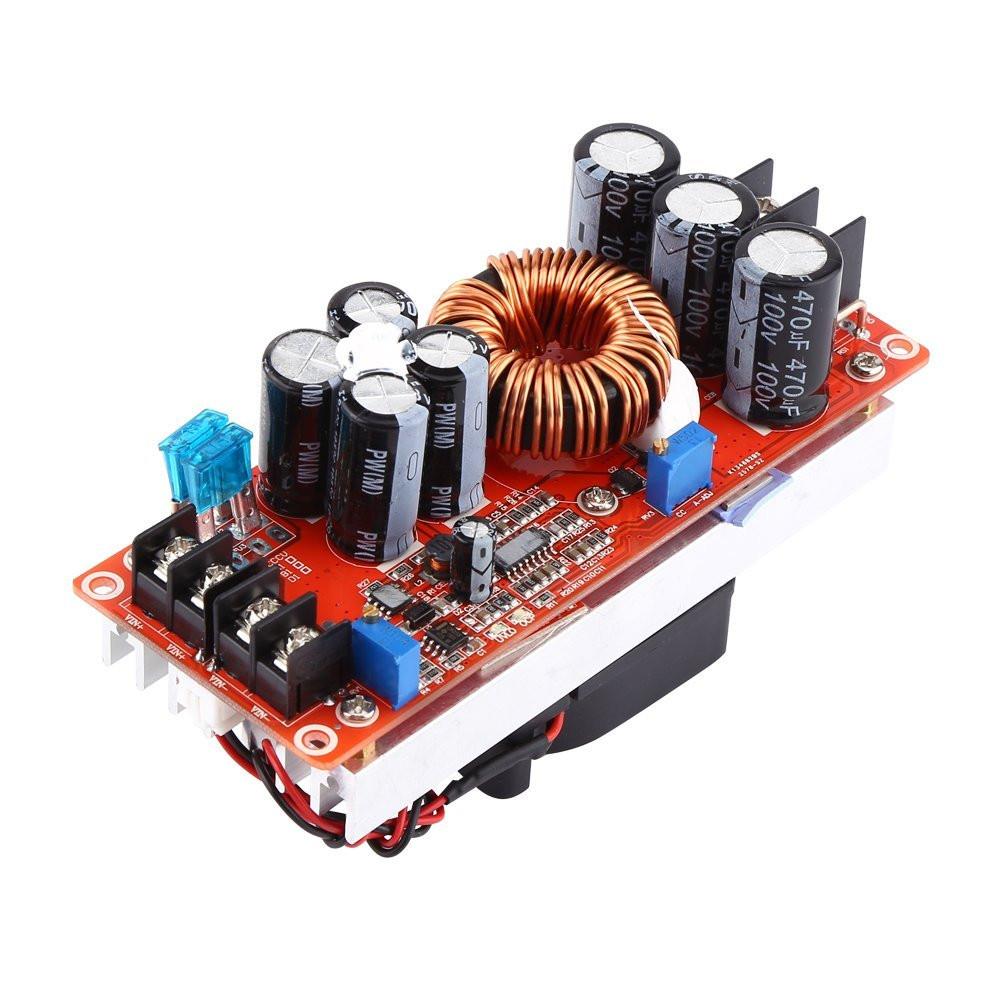

1200W DC-DC Constant Current Boost Converter Step-up Power Supply Module LED Driver 10-60V to 12-83V

SKU
MDL.1160
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<20 RFQ
20+ RFQ
50+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Type: Non-isolated boost module
Input Voltage: DC10V to 60V
Max Input Current: 20A (could reach 25A at 12V-24V when adding cooling fan)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 83V(continuously adjustable, default 19V)
Max Output Current: 18A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 10A)
Constant Current Range: 0.5A to 18A(+/-0.3A)
Reverse Input Protection: Yes (150A MOS)
Lower Voltage Protection: Yes (9V to 50V adjustable)

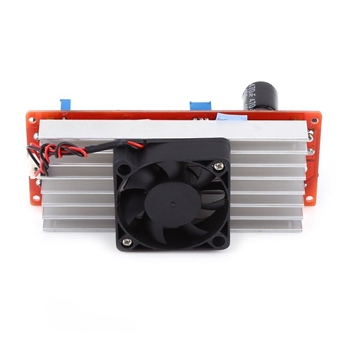

Temperature Control Fan: Yes (Fan starts to work if more than 55℃)
Operating Temperature: -40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current Protection: Yes (automatically protect when input is more than 25A, and power supply voltage will not increase)
Short Circuit Protection: Yes (input 30A fuse)
Wiring Method: Terminals (Please use large current copper wire)

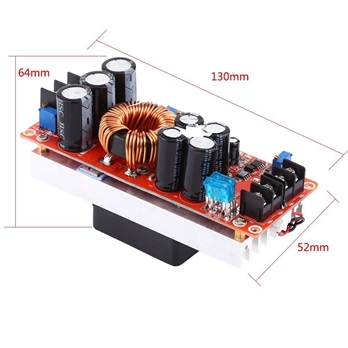

Size: 130×64×52mm / 5.12×2.52×2.04"


Package includes:

1 X 1200W DC-DC Constant Current Boost Converter Step-up Power Supply Module LED Driver 10~60V to 12~83V


Note: all the descriptions and prices are subject to change without prior notice.
