Ordering Information: 3DP.1022+ Length Option - Example 3DP.1022A is for 100mm in length.

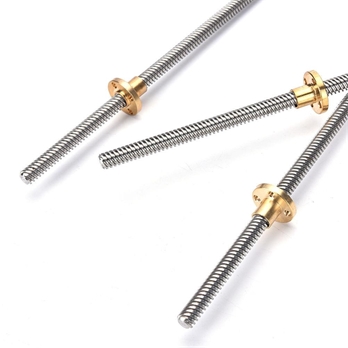

8mm Right handed Lead Screw Threaded Rod
Length Options (Please specify the length when ordering.)
A: 100mm B: 150mm
C: 200mm D: 250mm
E: 300mm F: 350mm
G: 400mm H: 450mm
I: 500mm J: 550mm
K: 600mm
Material: 304 Stainless steel
Lead - Refers to Turn a circle moving distance.
Please note Seven common types of 8mm lead screws.
T8 x 1 x 1: Thread diameter 8mm, 1mm pitch, Lead - 1mm per turn,
T8 x 2 x 2: Thread diameter 8mm, 2mm pitch, Lead : 2mm per turn,
T8 x 2 x 4: Thread diameter 8mm, 2mm pitch, Lead - 4mm per turn,
T8 x 2 x 8: Thread diameter 8mm, 2mm pitch, Lead - 8mm per turn,
T8 x 2 x 10: Thread diameter 8mm, 2mm pitch, Lead - 10mm per turn,
T8 x 2 x 12: Thread diameter 8mm, 2mm pitch, Lead - 12mm per turn.Package includes:
1 x 8MM Thread Lead with Screw (1x leadscrew, 1x nut)
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
